Domi Factory 3 Axle 40t 50t 60t 100t Gooseneck Lowboy Low Bed Semi Trailer Dimensions Lowbed Truck Trailer
Description
Basic Info.
| Shape | Flatbed |
| Self-dumping | Not Self-dumping |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Material | Steel |
| Condition | New |
| Types | Straight, Gooseneck etc |
| Axles Types | Steering Axle,Hydraulic Axle Available |
| Length | Different Length Available |
| Twist Lock | Available |
| Columns | Available |
| Platform | Extendable |
| Suspension | Mechanical System with Beams Equaliser |
| Electric System | 24V LED Light Waterproof Wire |
| Brake System | Dual Line Braking System |
| Axle Capacity | 28t Total Lifting Capacity and 50t Static Capacity |
| Painting | Sand Blaster and Color Option |
| Transport Package | Bulk Shipping or Container Shipping |
| Specification | Length 13000mm*Width 3000mm *Height 1800mm |
| Trademark | YONGCHAO |
| Origin | China Shandong |
| HS Code | 87163910 |
| Production Capacity | 3000 Set Per Year |
Product Description
Product Description

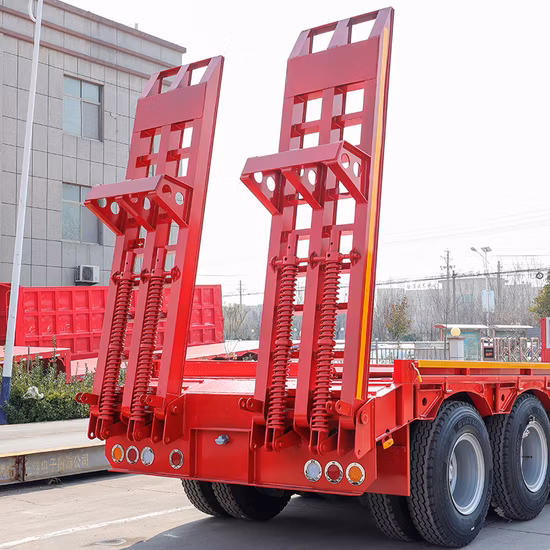

DOMI Factory 3 Axle 40T 50T 60T 100T Gooseneck Lowboy Low Bed Semi Trailer Dimensions Lowbed Truck TrailerDetailed Photos
DOMI Factory 3 Axle 40T 50T 60T 100T Gooseneck Lowboy Low Bed Semi Trailer Dimensions Lowbed Truck Trailer
Top quality and craftsmanshipNo loss of brightness in 3 years, no fading of color in 3 yearsOur beam tensile strength is above 800MPA, good toughness and stress resistance Top brands of axles, tires and rims
Suspension, compatible with Australian ADR standards,using composite sleeves or copper sleeves it has good durabilityStrong welding and accurate dimensions can avoid uneven wear on the tire surface Ruili air charmberThe largest brand in dustry, large brasking force & fast return & fuel savingService life of up to 2.1 million times
Product Parameters
DOMI Factory 3 Axle 40T 50T 60T 100T Gooseneck Lowboy Low Bed Semi Trailer Dimensions Lowbed Truck Trailer
| Tare Weight | 10t |
| Loading Weight | 60t |
| Dimension(mm) | platform length:7620mm, height is 635mm, traction height:1270mm |
| Main Beam | The height of the beam is 405 mm,upper flange 20 mm,down flange is 20 mm,middle flange is 12 mm, Material is Q 345B Steel |
| Cross member | 12#C type or AB type |
| Side rail | 380# "I" type, and equipped with the flip small ladder. |
| Platform | Q 235, checkered plate, 5 mm. |
| Gooseneck | engine system mounted inside gooseneck (easy to operate and waterproof).engine 10 hp electric starter, 2GPM pump, 6" bore w/22" stroke cylinder.detatchable hydraulic gooseneck, pneumatically controlled. |
| Leaf Spring | 90*16-10 6/8 sets, Funiu or Taiyue or other china brand |
| Axle | 13T 3/4 pcs, BPW or FUWA or other china brand |
| Tyre &Wheel rim | tyre 255/70R22.5 *12pcs, wheel rim 8.25*22.5 *12pcs |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| King pin | 2" / 3.5" |
| Hole / lashing | 12 pcs per side,24pcs in total |
| Hook | 9pcs per side,18pcs in total |
| Landing legs | 28 T total Lifting capacity and 50 T static capacity,two speeds |
| Brake system | Brand: XinyaType: Dual line braking system BrakeAir chamber: 6 in total, T30/30*4 + T30*2Air tank: 40L*2 unit ABS: noneABS: chooseable. |
| Electric system | 24V LED light waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. |
Related productsDOMI Factory 3 Axle 40T 50T 60T 100T Gooseneck Lowboy Low Bed Semi Trailer Dimensions Lowbed Truck Trailer
Packaging & Shipping
Company Profile
Shandong Yuncheng Xinya trailer manufacturing Co, Ltd. was established in June 2010. It covers an area of more than 106667m2 and has more than 300 employees. It is the "bulletin" enterprise of the Ministry of industry and information. Main business contains semi-trailer truck, glass reinforced plastic composite truck, aluminum alloy truck, Bat semi-trailer, container transportation semi-trailer, van type semi-trailer, self-unloading semi-trailer and so on. Company business is mainly engaged in the production of kinds of trailer and spare parts, meanwhile, we provide technical support and customization, aims to make the best needed trailer for customers worldwide.
We have been in truck trailer field for more than 20 years.Our products are famous in aftermarket.We've export to Europe, South America, South Africa and Southeast Asia;We've passed ISO9001:2000 & BV & SGS & CCC certificates;We've set up unified technical departments and testing standards.
FAQ
1. What are our advantages compared with other competitors?
√√ Competitive Good Quality -- We're trading company with factory. We have a series of advanced equipment including, such as auto riveting production line, laser cutting system,coating line,etc.In addition,we have obtained ISO9001 & CCC certificates & SGS certificates.
From numerous comparison and feedback from clients, our quality and sevice are more competitive than other competitors.
√√ Quick Response--
Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond client inquiries and questions all the time. Most problems can be solved within 12 hours.
√√ Fast delivery --
Normally it will take more than 25-45 days for other companies to produce the ordered trailers, while we have a variety of resources, locally and nation widely, to receive trailers in timely manner. In 70% circumstance, we can have a 15-20 days delivery of regular trailers for our clients.
2. Which payment terms can we accept?
Normally we can work on T/T term or L/C term.
√√ On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for regular client.
√√ On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight. a 100% irrevocable L/C without "soft clauses" can be accepted sometimes. Please seek the advice from the individual sales manager whom you work with.
3. How long will our price be valid?
√√ Price with long valid time --
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations:
The rate of USD:RMB varies significantly according to the international currency exchange rates.
Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.
4. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
√√For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
√√For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
√√ For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
