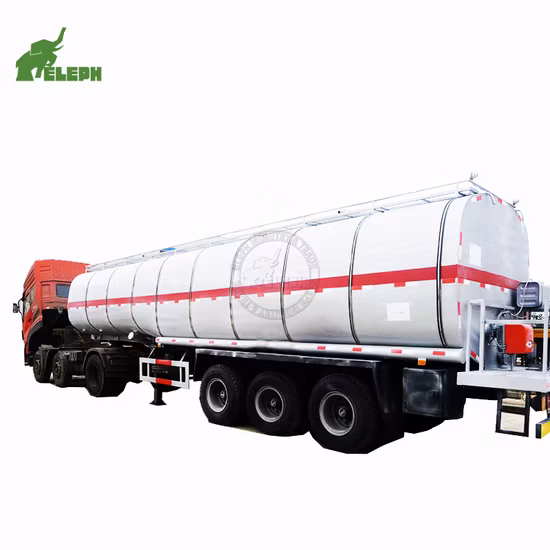

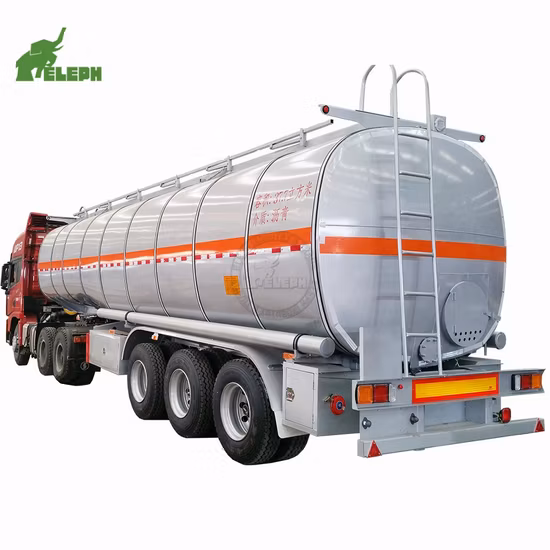

2019 Heating Wax Asphalt Bitumen Tanker Semi Trailer Liquid Tank for Sale
Description
Basic Info.
| Model NO. | ALP9600GRY |
| Tread | 1820mm |
| Grade | Light Duty |
| Independent Suspension Type | Mechanic Suspension |
| Shape | Round |
| Axle Number | 2 / 3 |
| Tire Number | 8 / 12 / or 4 / 6 |
| Self-dumping | Not Self-dumping |
| ABS Anti-lock Braking System | Optional |
| Material | Aluminum |
| Condition | New |
| Technology with | Automatic Submerged Arc Welding |
| Guarantee Term | 1 Year, Mainbeam Lifetime Promise |
| Tank Body | Aluminium Alloy |
| Optional Features | Aluminium Alloy for Tank or Whole Vehicle |
| Stringer | 2 Stringers of Manganese Steel in H Shape |
| Rust Prevention | Sand Blasting, 1 Layer of Prime.2 Layers of Paint |
| Rim Model | 8.0-20 (or 9.0-22.5 or as Needed) |
| Tire Model | 11.00r20 ( or 12r22.5 or 315/80r22.5) |
| Customizing | Accepted |
| Color | by Clients′ Needs |
| Transport Package | Containers. Bulk Ship. RO-RO |
| Specification | By The Customer Needs |
| Trademark | ELEPH |
| Origin | Shandong, China |
| HS Code | 8716399000 |
| Production Capacity | 70 Sets Per Month |
Product Description
PRODUCT DETAILS
Volume(CBM) | 50CBM (Size can be Accustomed) |
Medium | Bitumen |
Overall Dimension(L*W*H)(mm) | 12800*2500*3850 |
Shape of the tank body | Straight |
Tank body thickness | 5mm/Q235B |
Dish end thickness | 5mm/Q235B |
Baffle | 4mm/Q235B |
Dish end shape | Oval |
Compartment(piece) | One |
Manhole | Two(500mm in dimension) |
Discharge valve(piece) | Two |
Valve form | Ball vale |
Valve specification | 6" |
Insulation or not | Yes |
Running part | |
1,Axle number&specification:13T FUWA axle,3 pieces,with ABS | |
2,Suspension specification&number:Leaf spring 13*90*10 6 pieces | |
3,Kingpin:90# | |
4,Relay valve:Copy the American standard | |
5,Landing gears:20T | |
6,Tire specification&number:Brand Triangle 12R22.5,12 pieces | |
7,Rim specification&number:9.0*22.5,12 pieces | |
8,Break chamber:single/double/double,6 pieces | |
Electric System | |
1.Voltage: 24v 2.Receptacle: 7 ways (7 wire harness) 3.Tail lamp with turn signal, brake light & reflector, side lamp etc | |
Accessories | |
1,Fire extinguishing | 8kg*2 pieces |
2,Tool box | One piece*1.5m |
3,Spare wheel carrier | One piece |
1. How To Buy From Us ? How to Pay?
- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;TT/LC/Western Union/Credit Card
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
4. If We Can Provide Terms For Reducing Your Import Duties ?
- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
